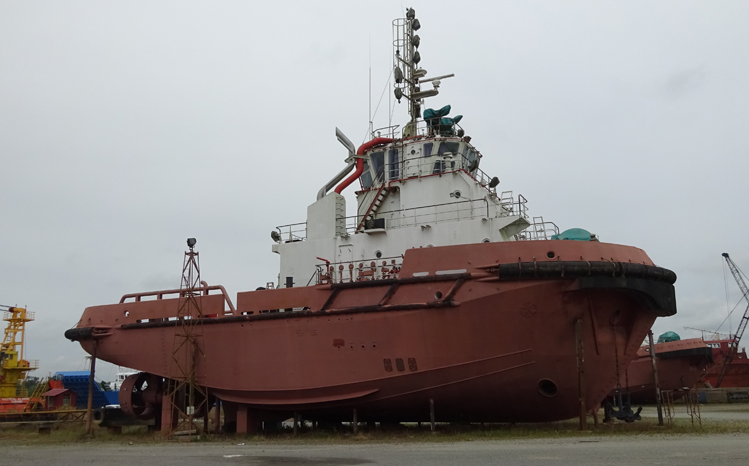

VT 10 32.5M Multi-purpose Tug
General Particulars
| Project Name | VT10 |
| IMO No. | 9634024 |
| Basic Function | Towing, Mooring, Line handling, Harbour, Escort, Anchor Handling |
| Classification | Bureau Veritas |
| Descriptive Note | Multi-purpose Azimuth Stern Drive Tug |
| Gross Tonnage | 438 Ton |
| L.O.A | 32.50 Meters |
| L.B.P | 27.50 Meters |
| Breadth Mld | 11.70 Meters |
| Depth Mld | 5.30 Meters |
| Design Draft | 3.71 Meters |
| Max Draft | 4.30 Meters |
| Bollard Pull | 50 Ton |
| Designer | Kenton Marine Singapore Pte Ltd |
Tank Capacities
| Ballast Water | 83.42 m3 |
| Fresh Water | 64.10 m3 |
| Fuel Oil | 168.97 /m3 |
Fire Fighting Class-1
| Capacity | 1200 m3/hr for each monitor (2 Monitor) |
| Throw and Height | 120 m x 45 m |
| Foam Max | Foam inductor adjustable, 300 L/min , 15.2 bar inlet pressure |
| Oil Dispersant | 2X 1-1/4" UOC 600 Nozzle, Flat Spray Type |
Propulsion System
| 2X Main Engine | Caterpillar 3516C, 2,200HP @ 1600RPM |
| Azimuth Thruster | BAT 523, BERG 1566kW, 1,600RPM, 2300 Diameter CPP |
