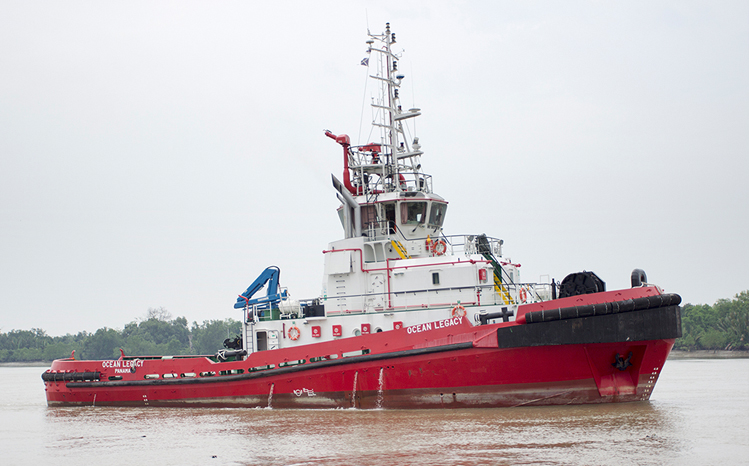

VT 2 35M ASD Harbour Tug
General Particulars
| Vessel Name | Ocean Legacy |
| Flag | Panama |
| IMO No. | 9607930 |
| Basic Function | Multi-purpose ASD Harbour Tug |
| Classification | Bureau Veritas |
| Descriptive Note | Maneuvers other vessels by pushing or pulling them either by direct contact or by means of a tow line |
| Gross Tonnage | 490 ton |
| L.O.A | 35.00 Meters |
| L.B.P | 30.63 Meters |
| Breadth Mld | 11.50 Meters |
| Depth Mld | 5.62 Meters |
| Design Draft | 4.50 Meters |
| Max Draft | 4.80 Meters |
| Designer | Kenton Marine Singapore Pte Ltd |
Tank Capacity
| Fuel Oil | 219.9 m3 |
| Fresh Water | 51.90 m3 |
| Ballast Water | 83.3 m3 |
Machineries
| 2X Main Engine | Caterpillar 3516B-HD, 2,575BHP @ 1,600 RPM |
| 2X Propellers | 2600mm, Modified type 19A nozzles |
| 2X Main Generator | Caterpillar C6.6 ACERT, 154.8 kW @ 1,500 RPM |
| 1X FiFi Engine | Cummins KTA38-M2, 969 kW @ 1,800 RPM |
| Navigation Area | Unrestricted |
