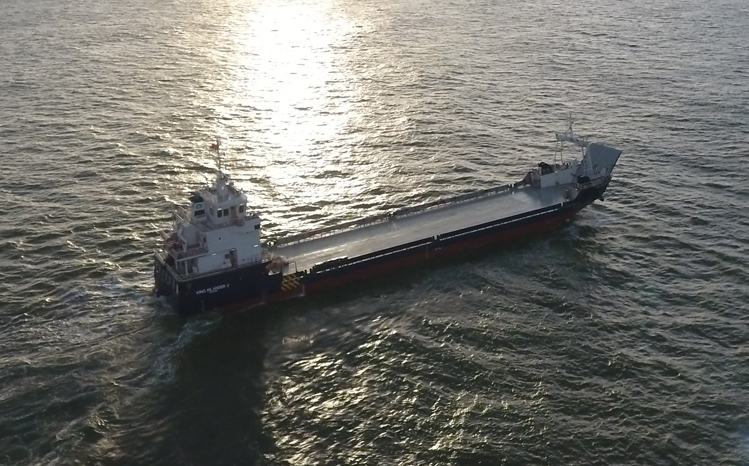

VT 13 80M Landing Craft
General Particulars
| Vessel Name | John Duigan |
| Flag | Australia |
| IMO No. | 9717606 |
| Basic Function | Landing Craft |
| Classification | Bureau Veritas |
| Descriptive Note | Container vessel, general cargo for shallow operation |
| Gross Tonnage | 1,758 ton |
| L.O.A | 80.00 Meters |
| L.B.P | 74.41 Meters |
| Breadth Mld | 16.00 Meters |
| Depth Mld | 4.80 Meters |
| Design Draft | 3.59 Meters |
| Max Draft | 3.68 Meters |
| Designer | United Ship Design |
Cargo Capacities
| Long Range F.O | 1,466.1 m3 |
| Deck Strength | 10 Ton/m2 |
| Open Deck Space | Est. 900.00 m2 |
Tank Capacity
| Daily Fuel Oil | 404.2 m3 |
| Fresh Water | 84.3 m3 |
| Fresh Water Ballast | 1,219.0 m3 |
Propulsion System
| 2X Main Engine | Cummins KTA50-M2, 1,600BHP at 1,800RPM with Gearbox ratio 5.044:1 |
| 2X Propellers | FPP, Dia 2,200 X 1,470 X 4 Blades X R/L X BAR 0.55 with KORT NOZZLE |
| Steering System | 3.5TM Hydraulic Steering System (Connecting rode type) |
| Bow Thruster Engine | Cummins QSM11-M 350BHP @ 1,800RPM with Gearbox ratio 1.459:1 |
| Bow Thruster | ZF TT 4000, L-Drive unit 449kW @ 1,576 RPM |
